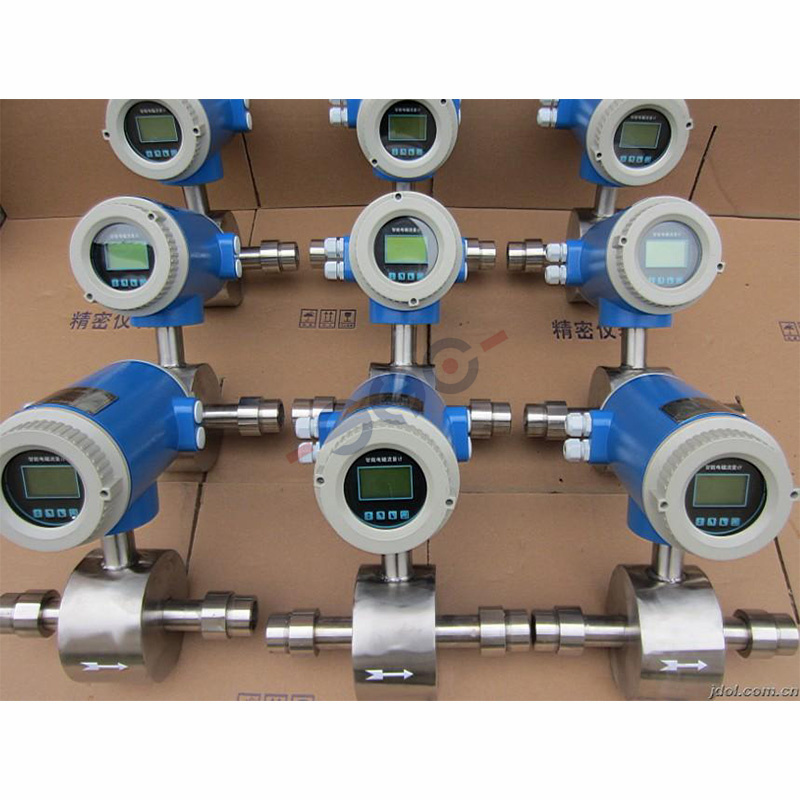

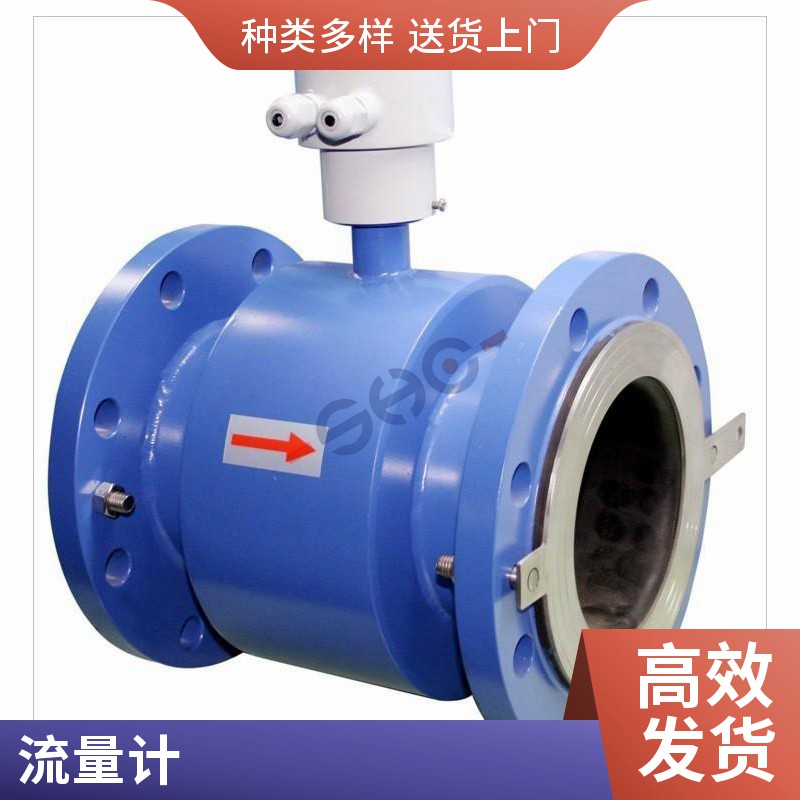

The intelligent electromagnetic flowmeter consists of two parts: a sensor and a converter. It operates based on Faraday's law of electromagnetic induction and is used to measure the volumetric flow of conductive liquids with conductivity greater than 5μS/cm. It is an inductive instrument for measuring the volumetric flow of conductive media. In addition to measuring the volumetric flow of general conductive liquids, it can also be used to measure the volumetric flow of highly corrosive liquids such as strong acids and alkalis, as well as uniform liquid-solid two-phase suspensions such as slurry, ore pulp, and paper pulp. It is widely used for flow measurement in industrial sectors such as petroleum, chemical, metallurgy, light textile, papermaking, environmental protection, and food, as well as in municipal administration, water conservancy construction, river dredging, and other fields.

II. Working Principle

According to Faraday's principle of electromagnetic induction, a pair of detection electrodes is installed on the pipe wall perpendicular to the measuring tube axis and magnetic field lines. When the conductive liquid moves along the axis of the measuring tube, the conductive liquid cuts the magnetic field lines and generates an induced electromotive force. This induced electromotive force is detected by the two electrodes, and its magnitude is directly proportional to the flow rate. Its value is:
   E=KBVD
   Where:
   E－induced electromotive force;
   K－coefficient related to magnetic field distribution and axial length;
   B－magnetic induction intensity;
   V－average velocity of conductive liquid;
   D－electrode spacing; (inner diameter of measuring tube)
   The sensor uses the induced electromotive force E as the flow signal and transmits it to the converter. After amplification, conversion, filtering, and a series of digital processing, the instantaneous flow and cumulative flow are displayed on a backlit dot-matrix LCD. The converter has 4～20mA output, alarm output, and frequency output, and is equipped with communication interfaces such as RS－485, and supports HART and MODBUS protocols.

III. Instrument Features

Fully digital processing, strong anti-interference capability, reliable measurement, high accuracy, and a flow measurement range up to 150:1;
Ultra-low EMI switching power supply, suitable for a wide power supply voltage variation range, with good EMI resistance;
Adopts a 16-bit embedded microprocessor with fast computing speed and high accuracy, and programmable frequency low-frequency rectangular wave excitation,  improving the stability of flow measurement with low power consumption;
Uses SMD components and surface mount (SMT) technology for high circuit reliability;
No moving parts or flow-blocking parts inside the pipeline, resulting in almost no additional pressure loss during measurement;
The measuring range can be modified online on site according to actual user needs;
The measurement result is independent of physical parameters such as flow distribution, fluid pressure, temperature, density, and viscosity;
High-definition backlit LCD display, full Chinese menu operation, convenient to use, simple to operate, and easy to learn and understand;
With digital communication signal outputs such as RS485, RS232, Hart, and Modbus; (optional)

With self-check and self-diagnosis functions;
Hourly total recording function, recording the total flow by hour, suitable for time-of-use metering systems (optional);
Internally equipped with three integrators that can separately display forward cumulative flow, reverse cumulative flow, and differential accumulated value, with a built-in power-off clock that can record 16 power-off times. (optional);
 Infrared handheld operator, 115KHZ communication rate, remote non-contact operation of all converter functions (optional).

Since its establishment, Xi'an Shenghongchuang Instrument Co., Ltd. has been mainly engaged in the R&D and production of pressure, level, temperature, differential pressure, digital display, weighing, and flow instruments. Its main products include Swiss metallux ceramic piezoresistive sensors, and self-developed ceramic capacitive pressure sensors. Diffused silicon, ceramic piezoresistive, strain gauge, metal capacitive, ceramic capacitive pressure transmitters, remote pressure transmitters, high-temperature pressure transmitters, flush diaphragm pressure transmitters, anti-corrosion pressure transmitters, integrated/split level transmitters, anti-corrosion level transmitters, lightning-protected level transmitters, high-temperature guided-pressure level transmitters, rigid stem level transmitters, flange level transmitters, wind pressure transmitters, metal capacitive differential pressure transmitters, diffused silicon differential pressure transmitters, pressure controllers, thermocouples/RTDs, temperature transmitters, ultrasonic level meters

Precautions 1.All supplied products are provided with product certificates and instruction manuals, including product numbers, technical parameters, wiring, factory date, etc. Please check them carefully to avoid misuse.2.Wiring should be carried out strictly in accordance with our company's instructions for use.3.This product is a precision instrument. Random disassembly, collision, dropping, or probing the sensor with sharp tools is prohibited.4.The transmitter can work immediately after power-on, but the output will stabilize after preheating for 30 minutes.5.If any abnormality is found during use, the power should be turned off, use should be stopped, and inspection should be carried out, or contact our company's technical department directly.6.During transportation and storage, restore the original packaging and store it in a cool, dry, and ventilated warehouse.7.The quality warranty period is 12 months (damage caused by improper use such as pressure overload or wiring errors is not covered by the quality warranty).8.Special products are customized products and do not participate in the 7-day no-reason return policy. Customized products have a lead time and are non-returnable and non-exchangeable.
