Before commissioning a pressure transmitter on site, do not rush to power it on. First verify the range, wiring, power supply, and installation status, then check whether the zero point and output signal are normal. Mastering these steps can effectively reduce errors and improve commissioning efficiency and operational stability.

For users and on-site operators, a pressure transmitter is not a simple device that can be used immediately after being connected. Especially in chemical processing, water treatment, heating, hydraulic, and equipment-support applications, overlooking even one basic inspection item may result in 4mA drift, 20mA full-scale deviation, or even subsequent interlock malfunction.

Xi'an Shenghongchuang Instrumentation Co., Ltd. has long provided pressure sensors, pressure transmitters, and various sensing and measurement-control products for industrial applications. Based on common application experience in the sensor industry, the following sections explain the commissioning sequence, key inspection points, common misconceptions, and on-site handling recommendations to help operators commission pressure transmitters more reliably, quickly, and accurately.

Before On-Site Commissioning, Verify These 4 Basic Conditions

Many pressure transmitter faults are not caused by abnormalities in the product itself, but by insufficient preparation before commissioning. Under normal circumstances, the initial on-site inspection should be completed within 10 to 20 minutes. Focus on verifying these four basic items: measurement range, installation position, power supply conditions, and wiring method. This can eliminate approximately 70% of basic problems in advance.

Does the Measurement Range Match the Operating Conditions?

First, check the nameplate. Operators should confirm whether the measurement range of the pressure transmitter matches the on-site operating conditions, such as 0～0.6MPa, 0～1MPa, or 0～10MPa. If the actual working pressure remains below 10% of the range for an extended period, output resolution may be affected. If it remains above 90% of the full scale, the risk of overload may increase.

Focus on These 3 Parameters

1. Whether the upper range limit is higher than the maximum on-site pressure. A 10%～20% margin is generally recommended;
2. Whether the output signal matches the control system, such as 4～20mA or 0～10V;
3. Whether the accuracy class meets process requirements, commonly 0.5%FS or 0.25%FS.

Could the Installation Status Affect Measurement Results?

The second step is to inspect the installation. If a pressure transmitter is installed at the outlet of a pump with significant vibration, on a steam branch with severe temperature fluctuations, or where the pressure port is blocked, leaking, or holding liquid, signal stability may be directly affected. For general industrial sites, it is recommended to keep the sensor body at least 0.5 meters away from strong vibration sources. A buffer bend or vibration-reduction measure should be added when necessary.

When measuring gas pressure, the pressure port should preferably face downward or be positioned horizontally to reduce the impact of condensate. When measuring liquid pressure, avoid installation at the highest point whenever possible to prevent air bubbles from accumulating. Although this may appear to be only a difference in orientation, in low-pressure applications such as 0～100kPa, zero-point errors are often significantly amplified.

To facilitate rapid on-site troubleshooting, confirm the pre-commissioning status item by item according to the table below to avoid missed inspections.

Among these 4 basic inspection items, wiring and power supply are the easiest to overlook. In particular, for two-wire 4～20mA pressure transmitters, if the total loop resistance is too high or the input method of the PLC analog module does not match, the transmitter may be normal but the output value may remain fixed within a certain range.

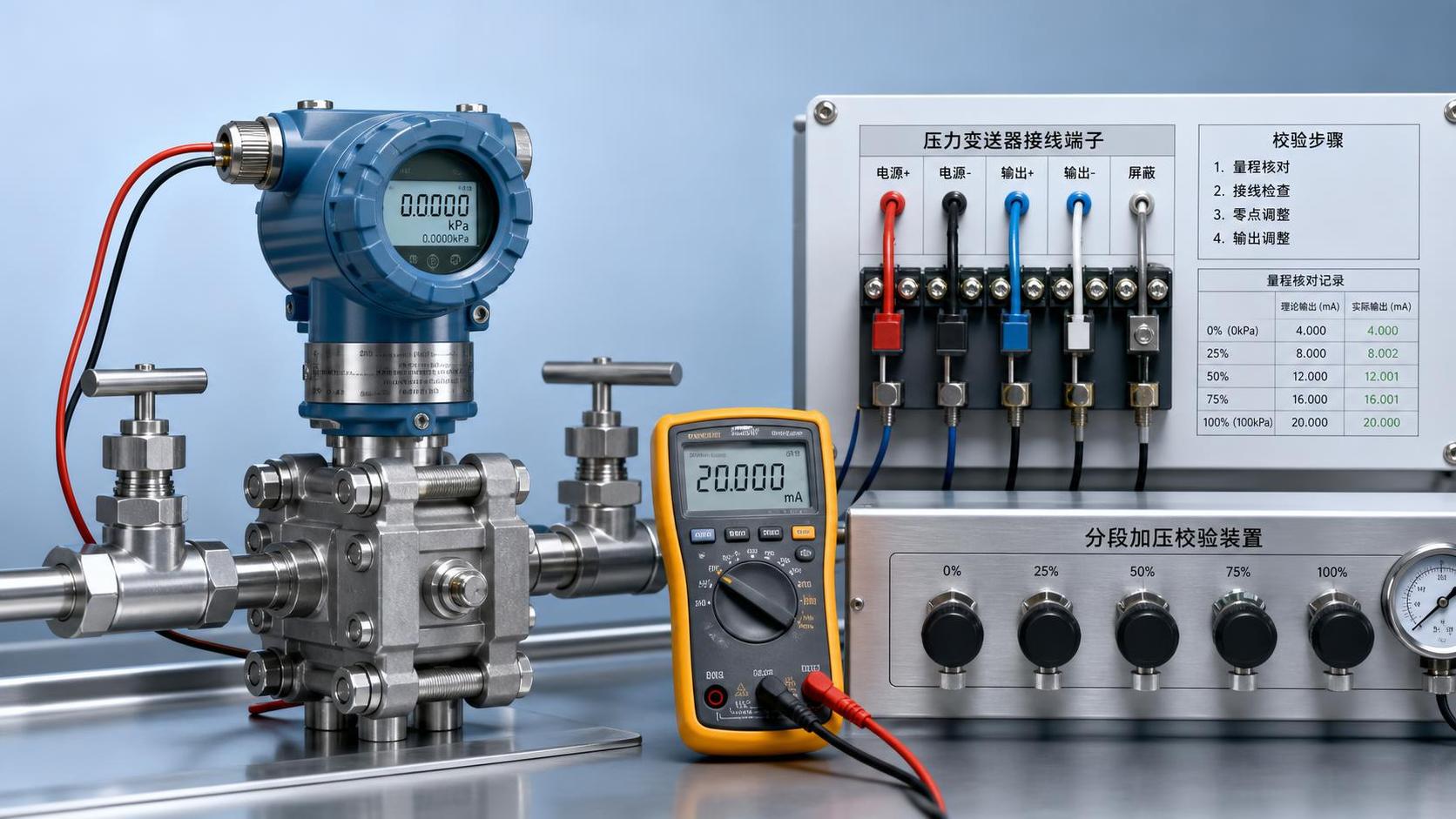

During Power-Up Commissioning, the “Zero Point—Output—Pressurization” Sequence Is More Efficient

After completing the static inspection, proceed with power-up commissioning. For most pressure transmitters, it is recommended to follow these 3 steps: check the zero point first, then test the output, and finally perform pressurization verification. The benefit of this sequence is that once an abnormality is found, it is possible to quickly determine whether the problem comes from the installation, power supply, or sensor itself, reducing repeated disassembly and installation.

Step 1: Check the Zero Point Under No-Pressure Conditions

After confirming that the process side is pressureless or connected to the atmosphere, first read the pressure transmitter output. For a 4～20mA standard signal, the theoretical zero-point value is close to 4mA; for 0～10V, the zero point should be close to 0V. The allowable on-site error should generally be evaluated together with the accuracy class. For example, for a 0.5%FS device with a 1MPa range, the zero-point deviation should not be excessive.

If the display does not return to zero under no-pressure conditions, do not immediately conclude that the product is damaged. Check the residual pressure at the pressure port, changes in installation orientation, the wiring loop, and the sampling settings of the display instrument in sequence. In many cases, so-called “zero-point drift” is essentially caused by residual medium in the impulse line or an incorrect range-conversion setting at the display end.

Step 2: Verify Whether the Output Signal Is Continuous and Stable

Use a multimeter, ammeter, or the system's analog monitoring interface to observe whether the pressure transmitter output is stable. Under normal conditions, current fluctuations should be small when the process is stationary. If the output continues to fluctuate frequently without any obvious pressure change, investigate factors such as electromagnetic interference, poor grounding, a floating shield layer, or excessive power-supply ripple.

4 Signal Points to Check

• Whether the voltage at the transmitter terminals is stable;
• Whether the acquisition value of the PLC or display instrument matches the on-site gauge;
• Whether the output changes linearly under no-load and loaded conditions;
• Whether the shield layer is grounded at one end only to avoid forming a ground loop.

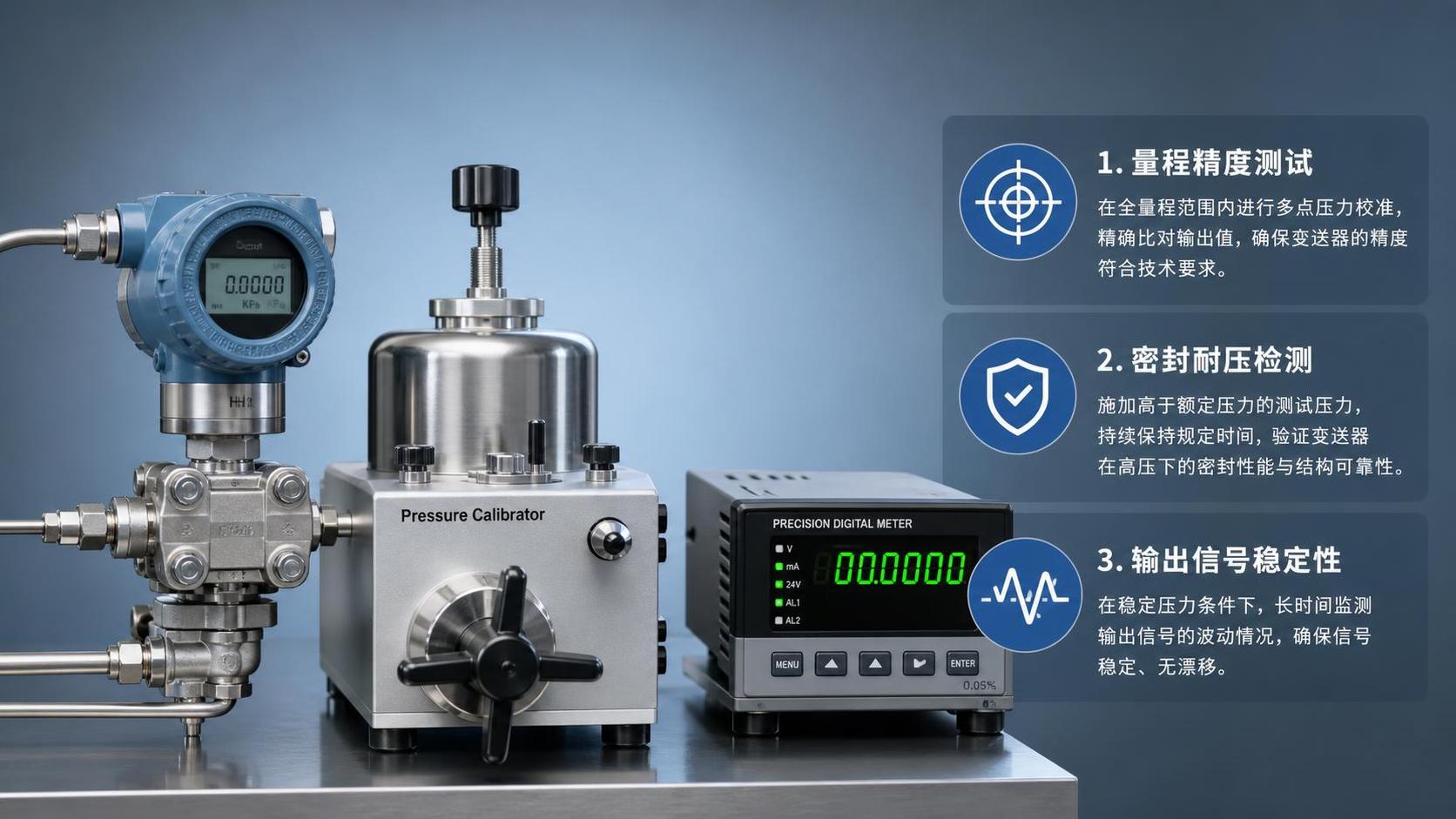

Step 3: Verify Range Response Through Stepwise Pressurization

Finally, perform a pressurization test. A more reliable method is to verify the response step by step at four points: 25%, 50%, 75%, and 100%. For example, for a 0～1MPa pressure transmitter, test whether the corresponding outputs at 0.25MPa, 0.5MPa, 0.75MPa, and 1MPa are close to 8mA, 12mA, 16mA, and 20mA, respectively. This method is intuitive and makes it easier to identify linearity deviations.

If on-site conditions are limited, at least complete checks at the zero point, 50% of the range, and full scale. For workstations with high control-accuracy requirements, such as constant-pressure water supply, hydraulic loading, and filter differential-pressure monitoring, it is recommended to retain records for both pressurization and depressurization to determine whether hysteresis and repeatability are within acceptable ranges.

The points of focus differ at each commissioning stage. Recording the results step by step makes handover and subsequent review easier.

Based on on-site experience, stepwise pressurization is more practical than “going directly to full scale.” It not only verifies whether the pressure transmitter output is normal, but also allows operators to promptly identify problems such as slight leakage at a fitting, signal-conversion deviation, or an incorrect system acquisition scaling setting.

The 3 Most Common On-Site Misconceptions Often Delay Progress More Than Equipment Faults

Many projects take longer to commission not because of abnormal pressure transmitter quality, but because on-site procedures are not standardized. Especially during equipment integration, if the electrical, instrumentation, and mechanical teams do not maintain unified records, problems may be investigated repeatedly, affecting the commissioning schedule.

Misconception 1: Replacing the Old Instrument Without Reading the Instructions

When upgrading old equipment, some people check only the interface dimensions but ignore the output format and power-supply requirements. For example, the original system may use three-wire voltage output, while the replacement is a two-wire 4～20mA pressure transmitter. This mismatch may result in a situation where the device powers on but the data is incorrect. Before replacement, verify at least these 4 items: interface, range, output, and power supply.

Misconception 2: Equating an Abnormal Display Directly with Sensor Damage

When the on-site value is too high, too low, or fluctuating, many people immediately consider replacing the pressure transmitter. In fact, the problem may also be caused by a valve not being fully opened, a blocked impulse line, an uncleared system zero point, or an improper resolution setting in the acquisition module. A 5-minute basic inspection is often more efficient than immediate disassembly and replacement.

Misconception 3: Ignoring the Long-Term Operating Environment

Successful initial commissioning does not mean that subsequent operation will remain stable. If the on-site temperature remains above 60℃, if there is moisture or condensation, if the medium pulsates strongly, or if frequent water hammer occurs, a pressure transmitter may develop drift within 1 month to 3 months even if it operates normally at the beginning. Therefore, protection, buffering, and maintenance arrangements for later operation should be assessed during commissioning.

Simple Maintenance Habits Operators Can Establish

1. Check the output trend once a week and watch for continuous drift;
2. Check the tightening condition of fittings, cables, and terminals monthly;
3. Perform a spot check of the zero point and midpoint once every quarter;
4. During shutdown maintenance, clean the pressure port and accessories at the same time.

Choosing the Right Pressure Transmitter and Service Support Makes Subsequent Commissioning Much Easier

For users, successful commissioning depends not only on the operating procedures but also on whether the initial selection is appropriate. A pressure transmitter suited to the operating conditions can usually reach a stable state more quickly after installation. Conversely, even repeated on-site calibration may not produce ideal results if the selection is unsuitable.

What Factors Should Be Considered During Selection?

First, consider the characteristics of the medium: whether it is gas, liquid, or a corrosive process medium. Next, consider the pressure range, installation interface, output signal, and temperature conditions. Then determine whether vibration resistance, interference resistance, or matching display and control functions are required on site. For most industrial applications, confirming these 5 conditions in advance can significantly reduce the likelihood of subsequent rework.

Xi'an Shenghongchuang Instrumentation Co., Ltd. offers a wide range of products, including pressure sensors, pressure transmitters, displacement sensors and transmitters, flow sensors and flowmeters, load cells and transmitters, force sensors and transmitters, temperature and humidity sensors and transmitters, torque sensors, and intelligent digital display control instruments. These products are suitable for systematic matching in equipment-support and industrial automation applications. For operators, receiving more consistent selection and commissioning support is often more time-saving than purchasing a single sensor separately.

What On-Site Problems Can Service Coordination Solve?

In actual projects, operators' common needs are not complicated. The key is whether the device can be connected quickly, calibrated accurately, and operated stably. Therefore, supplier support should cover at least 3 aspects: basic wiring guidance, range and output confirmation, and recommendations for troubleshooting abnormal signals. Even confirming a single wiring diagram in advance may save half a day of on-site troubleshooting.

If you are carrying out equipment upgrades, adding new points to a production line, or replacing old instruments, it is recommended to organize the medium type, pressure range, interface dimensions, power-supply method, and control-system input type before purchasing. This not only facilitates the selection of a suitable pressure transmitter but also helps the on-site commissioning process avoid unnecessary detours from the start.

Once the commissioning sequence is clarified, on-site pressure transmitter work becomes much simpler: first verify the range and installation, then check the power supply and wiring, next perform zero-point, signal, and stepwise pressurization verification, and finally proceed to formal operation. For users seeking stable operation and efficient maintenance, this process is practical and easy to replicate across additional workstations.

If you would like to further confirm product compatibility, wiring methods, or key points for on-site commissioning, please contact Xi'an Shenghongchuang Instrumentation Co., Ltd. for pressure transmitter selection recommendations and sensor application solutions better suited to your operating conditions, and learn more about our solutions.
