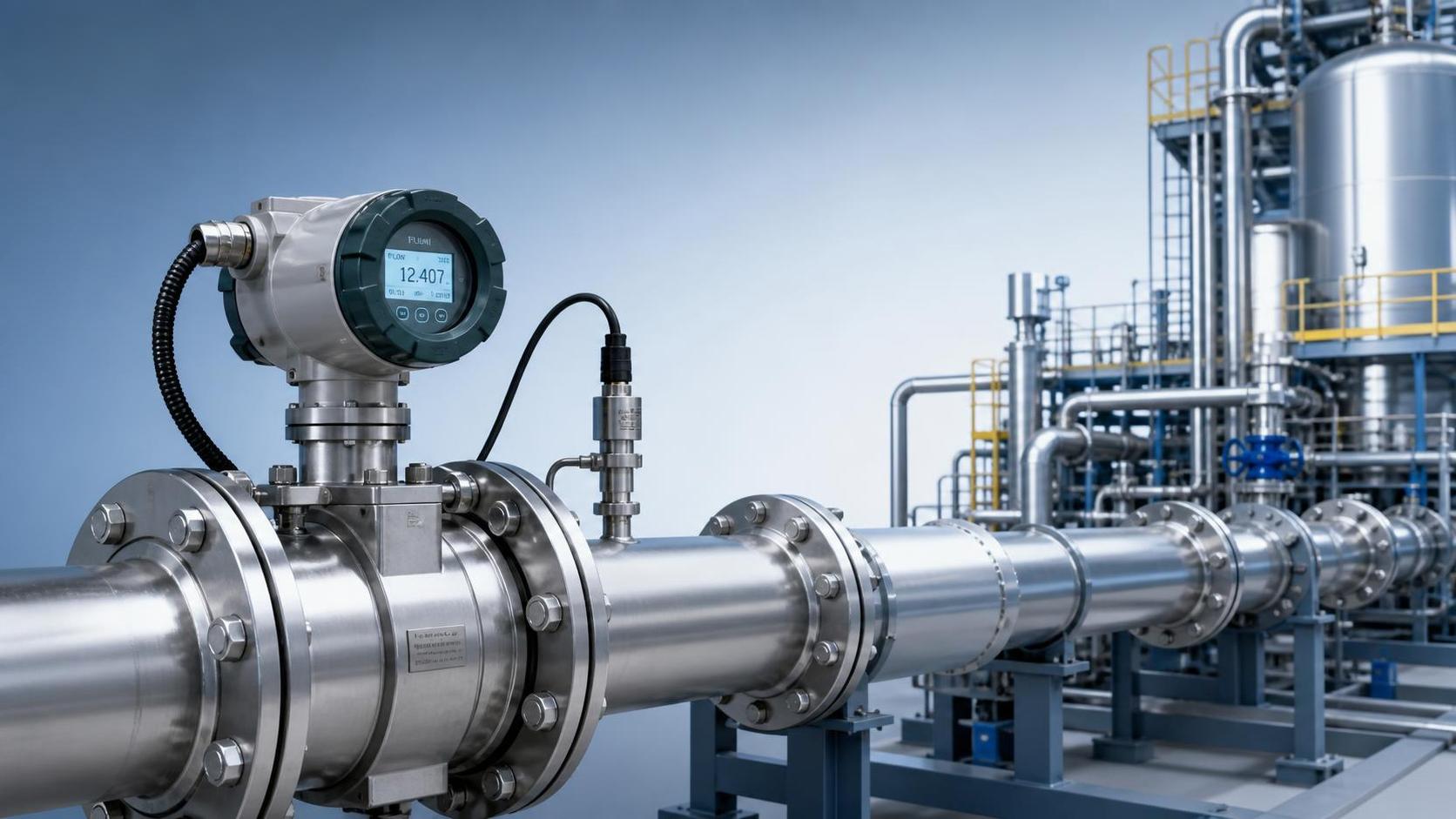

What Parameters Should Be Considered When Selecting High-Pressure Flow Meters in Shaanxi?

In high-pressure operating conditions such as chemical processing, energy, metallurgy, compressed air stations, and intelligent manufacturing, flow meters not only undertake the task of medium metering, but are also related to process control, energy consumption accounting, and equipment operational safety. The selection of high-pressure flow meters in Shaanxi should not be based solely on pipe diameter and price; medium properties, pressure rating, temperature range, flow range, installation environment, and signal integration method should all be reviewed together.

Under high-pressure conditions, fluid density, viscosity, compressibility, and pipeline vibration may differ significantly from those under normal-pressure conditions. In particular, for steam, natural gas, compressed air, and high-pressure liquids, improper calculation of the flow range, selection of instrument pressure resistance rating, or choice of connection type can easily result in indication deviations, excessive pressure loss, and seal failure.

Xi'an Shenghongchuang Instrument Co., Ltd. is responsible for brand operation, sales, and technical services, while its subsidiary, Shaanxi Qinkong Sensor Technology Co., Ltd., provides supporting manufacturing capabilities. The company can provide flow meter and related sensor measurement and control product selection based on actual process parameters. For non-standard piping, high-temperature and high-pressure conditions, strong interference, or applications requiring remote control, technical parameters should be confirmed before ordering.

Purchasing personnel may first compile the design pressure, normal operating pressure, medium temperature, minimum and maximum flow rates, pipe material, connection standard, and on-site power supply conditions, and then verify the instrument model with technical personnel. The more complete the parameters, the better the match between the flow meter and on-site operating conditions, and the more controllable the subsequent commissioning and maintenance costs.

I. First Confirm Medium Characteristics and Measurement Objectives

The Medium Determines the Flow Meter Principle and Materials

The first step in selection is to identify whether the medium is a liquid, gas, steam, or multiphase fluid. For liquids such as water, heat transfer oil, and hydraulic oil, key considerations include viscosity, corrosiveness, and impurity content. For compressed air, nitrogen, oxygen, and process gases, gas pressure, temperature compensation, and standard-condition conversion need to be considered. For saturated steam and superheated steam, the steam condition should also be specified.

For conductive liquids, electromagnetic flow meters can be used to measure volumetric flow, but their lining and electrode materials must be compatible with the corrosiveness of the medium. For clean gases, steam, and most liquids, vortex flow meters offer a broad application range. For high-accuracy liquid metering, oil transfer, or batching control, turbine and positive displacement solutions should also be assessed based on actual conditions.

If the medium contains fibers, particles, crystalline substances, or bubbles, their concentration and particle size should be specified. Impurities may cause impeller jamming, sensor wear, or blockage at pressure tapping points; bubbles and pulsation may increase fluctuations in instantaneous flow. Where necessary, filtration, flow straightening, or venting measures may be installed upstream of the instrument.

At the same time, the measurement objective should be distinguished as instantaneous flow, totalized quantity, mass flow, or standard volumetric flow. For trade settlement, energy accounting, and critical feeding processes, in addition to instrument accuracy, it is also necessary to clarify whether temperature and pressure compensation is required, as well as requirements for totalized value storage, communication, and traceability.

Common Media and Key Considerations

II. Pressure Rating, Temperature, and Structural Strength

Design Pressure Must Not Be Replaced by Normal Operating Pressure

The nominal pressure of a high-pressure flow meter should cover the system design pressure and allow an adequate safety margin appropriate to process risks. A normal operating pressure of 1.6MPa does not mean that an instrument rated only for 1.6MPa is sufficient. Peak pressures that may occur during start-up and shutdown impacts, rapid valve operation, pump outlet pulsation, and abnormal pressure rises should also be considered.

The connection method must match the pipeline rating. Common types include flange connections, threaded connections, sanitary clamp connections, and special high-pressure fittings. Flange standards, pressure ratings, sealing face types, and bolt specifications all need to be confirmed individually. Under high-pressure conditions, it is not advisable to determine whether an interface can be directly replaced based solely on pipe diameter.

Temperature directly affects the reliability of sensor materials, seals, and electronic components. For example, sealing materials suitable for normal-temperature service may age more quickly in high-temperature steam or hot oil; for low-temperature media, material embrittlement and condensation effects should be considered. Medium temperature, ambient temperature, and possible instantaneous temperature peaks should be provided separately.

For applications with pressures above 10MPa, temperatures above 200℃, or media that are highly corrosive, flammable, or explosive, the sensor body material, process connection, sealing material, protective construction, and explosion-proof requirements are recommended to be confirmed as combined technical conditions rather than treated as separate parameters.

High-Pressure Structure Verification Checklist

III. Range, Accuracy, and Pressure Loss Should Be Calculated Together

The Flow Range Should Cover Start-Up, Shutdown, and Full-Load Conditions

Flow parameters should include at least the minimum flow, normal operating flow, maximum flow, and short-term peak flow. Providing only “DN50 pipe diameter” cannot determine the instrument range, because flow velocity within pipes of the same diameter may differ by several times. Actual flow usually needs to be converted into operating-condition flow, and the flow velocity should be checked to ensure it falls within the applicable range of the instrument type.

An excessively large range will result in insufficient resolution at low flow rates, while an excessively small range may exceed limits under peak conditions. For systems with large flow variations, priority may be given to turndown ratio, low-flow response, and stability. For applications such as quantitative dosing and ratio control, repeatability, totalizing accuracy, and response speed of the control output require further confirmation.

Accuracy specifications should be understood according to the intended use. For general process monitoring, meeting control requirements is sufficient; for cost accounting, energy consumption statistics, or internal metering assessment, attention should also be paid to basic error, repeatability, temperature and pressure compensation error, and the impact of installation conditions on accuracy. The stated accuracy can generally only be achieved under specified medium, flow velocity, and installation conditions.

Pressure loss is also a factor that cannot be ignored in high-pressure systems. Instruments such as throttling and turbine types create a certain amount of resistance in the pipeline. If downstream pressure margin is limited, excessive pressure loss may affect equipment feeding or process stability. During selection, pressure loss data at normal operating flow and maximum flow should be requested.

Range Data Is Recommended to Be Submitted as Follows

For gas and steam projects, the condition corresponding to the flow unit should be specified, such as Nm³/h, kg/h, or actual m³/h. Standard volumetric flow based on 20℃ and 101.325kPa is not the same as the actual volumetric flow in a high-pressure pipeline. Unclear conversion conditions can directly lead to deviations in pipe diameter and range.

For liquid projects, it is recommended to provide medium density, viscosity, and the temperature variation range. At higher viscosity, the lower flow velocity limit and pressure loss of certain flow meters may change; when medium temperature fluctuates significantly, density changes may also affect mass flow or standard volumetric flow calculations.

If reciprocating pumps, air compressors, or frequently operated valves are present on site, the flow may exhibit obvious pulsation. In this case, in addition to selecting a suitable flow range, the sensor's vibration resistance, signal damping settings, and straight pipe section conditions should be assessed to avoid mistaking instantaneous fluctuations for actual production changes.

It is recommended to state all three sets of “minimum/normal operating/maximum flow” data in the technical confirmation sheet. For example, a normal operating flow of 60m³/h, a maximum flow of 90m³/h, and a minimum flow of 15m³/h are more conducive to properly determining pipe diameter and instrument type than providing the maximum value alone.

IV. Installation Conditions and Signal Configuration Are Equally Important

On-Site Piping Affects Actual Measurement Performance

The flow meter installation location should avoid areas with severe vibration, significant electromagnetic interference, frequent gas-liquid mixing, or a tendency for liquid or deposits to accumulate. Different operating principles have different straight pipe section requirements. If the on-site installation is close to an elbow, tee, control valve, or pump outlet, flow distribution may be unstable, and appropriate upstream and downstream straight pipe sections should be reserved according to the instrument manual.

Liquid pipelines should generally ensure that the measuring pipe section is completely filled, avoiding installation at the highest point of the pipeline where gas may accumulate. Gas pipelines should prevent condensate from entering the sensor. During steam measurement, insulation, drainage, and pressure tapping point arrangement may all affect operational stability. It is not sufficient to complete only the mechanical installation while neglecting supporting process conditions.

The output method should match the control system. Common configurations include 4-20mA analog signals, pulse output, RS485 communication, and HART. If connection to a PLC, DCS, intelligent digital display control instrument, or remote monitoring platform is required, power supply voltage, communication protocol, station address settings, cable length, and shielding and grounding requirements should be confirmed in advance.

For outdoor, humid, dusty, and hazardous areas, protection rating, explosion-proof rating, and corrosion resistance requirements should also be considered. For areas with risks from combustible gases, volatile solvents, or dust, appropriate explosion-proof products must be selected according to the on-site hazardous area classification and relevant standards; ordinary instruments must not be used as substitutes.

Information Recommended for Confirmation Before Ordering

Complete high-pressure flow meter selection data typically include: medium name and composition, design pressure and temperature, minimum, normal operating, and maximum flow rates, pipe diameter, connection standard, installation orientation, site environment, power supply method, output signal, and explosion-proof requirements. For retrofit projects, supplementing this information with site photos, pipeline layout drawings, and original instrument nameplate information can reduce interface mismatch issues.

Xi'an Shenghongchuang Instrument Co., Ltd. can assist in verifying flow measurement solutions in combination with sensors, transmitters, intelligent digital display control instruments, and industrial automation supporting requirements. For complex operating conditions, the flow meter can be evaluated together with measurement parameters such as pressure and temperature to ensure consistency in display, alarm, totalizing, and remote-control logic.

Relying on standardized production, precision machining, program debugging, accuracy calibration, and finished-product inspection processes, Shaanxi Qinkong Sensor Technology Co., Ltd. provides supporting product services for conventional and non-standard applications. Actual selection should still be based on on-site process data and technical confirmation results, especially for high-temperature, high-pressure, highly corrosive, and high-interference conditions.

To purchase a high-pressure flow meter in Shaanxi, please prepare parameters such as the medium, pressure, temperature, flow range, pipe diameter, connection method, and signal requirements, and communicate with the technical personnel of Xi'an Shenghongchuang Instrument Co., Ltd. for confirmation to obtain model recommendations and supporting solutions better suited to on-site operating conditions.
