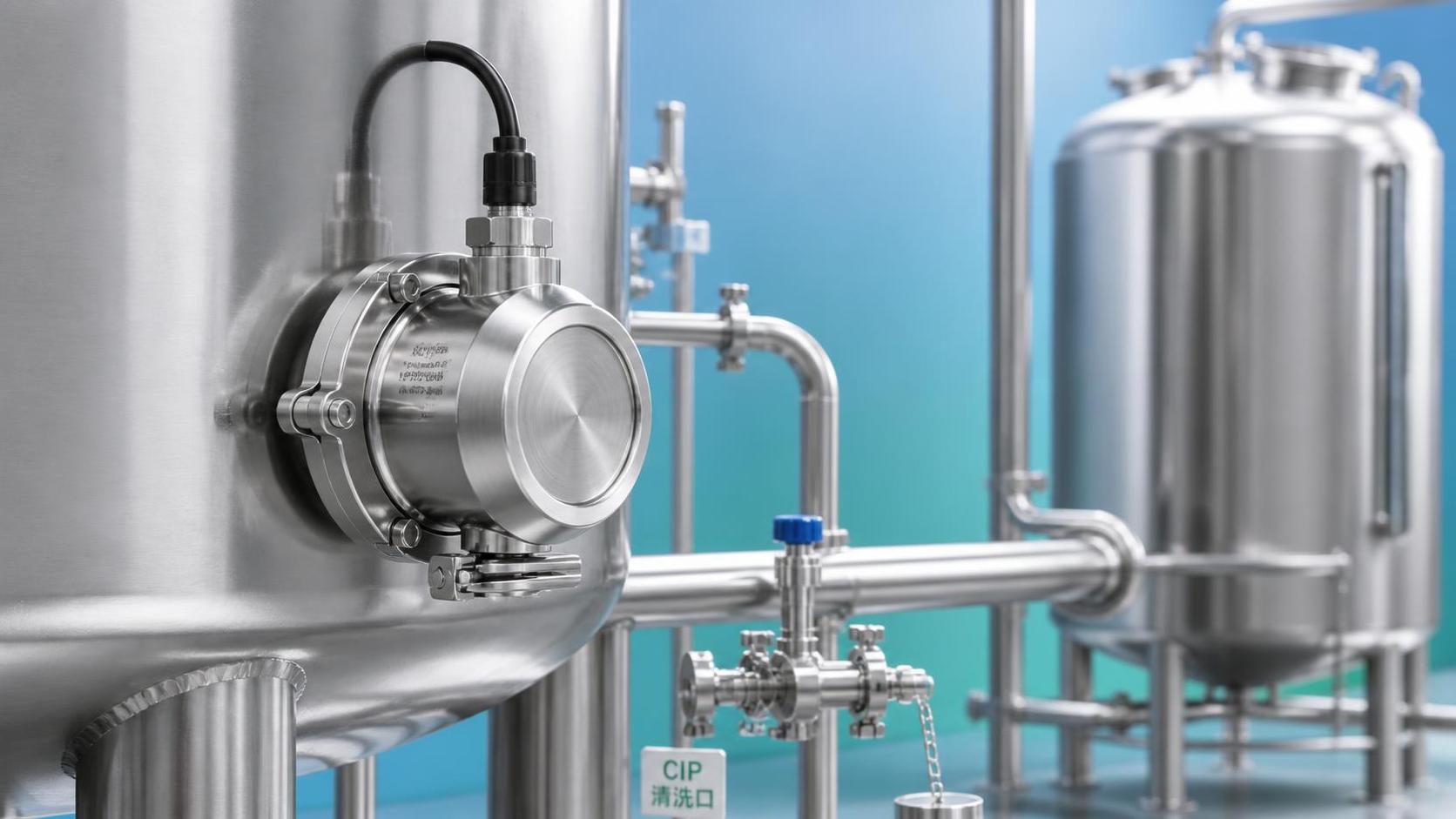

Installation Precautions for Sanitary Flush Diaphragm Level Sensors

Sanitary flush diaphragm level sensors are commonly used in food processing, pharmaceuticals, biofermentation, fine chemicals, and high-cleanliness storage tanks. Their diaphragm contact surface is flat and free of retention dead zones, helping reduce material residue and cleaning difficulty. Installation quality affects not only the stability of level measurement but also the hygiene control effectiveness during CIP and SIP cleaning processes.

Compared with conventional submersible and flange-mounted level measurement products, sanitary flush diaphragm products have stricter requirements for installation orientation, sealing structure, wetted materials, and cleaning processes. Especially when handling sugar solutions, dairy products, fermentation broths, viscous slurries, or crystallization-prone media, localized material accumulation, bubble adhesion, and incorrect zero-point settings may all cause persistent deviations in measurement results.

Before on-site implementation, confirmation should be made based on tank structure, medium characteristics, maximum operating temperature, cleaning pressure, and control system interfaces. For 24V-powered level sensors with 4-20mA output, wiring, zero-point verification, and full-scale commissioning should also be performed after mechanical installation is completed to avoid misjudging mechanical issues as electrical faults.

I. First Confirm the Installation Position and Pressure Tapping Direction

Avoid Inlets, Return Ports, and High-Agitation Areas

The sensor should be installed where level changes can accurately reflect the average liquid level inside the tank. For vessels with agitators, avoid locations directly above impellers, circulation return impact zones, and high-speed spray areas; otherwise, instantaneous medium impact may cause output signal fluctuations and frequent valve actuation.

Generally, side-mounted measurement points should be at least 300mm away from the inlet. Where inlet flow is high, liquid viscosity is low, or significant foam is present, flow-guiding measures may be added according to the on-site structure, or the installation point may be positioned farther away from areas with liquid surface disturbance.

If coils, baffles, floating scum, or fixed support components are present inside the vessel, confirm that they will not obstruct the pressure-sensing surface of the flush diaphragm. For conical-bottom tanks, the measurement point should not be placed excessively close to the lowest discharge outlet, to prevent residual liquid during emptying, deposits, or cleaning liquid backflow from affecting zero-point stability.

The Flush Diaphragm Surface Should Be Level with the Inner Vessel Wall

The key requirement for sanitary flush diaphragm level sensors is that, after installation, the diaphragm should be as flush as possible with the inner surface of the tank wall. A diaphragm protruding into the tank can easily create a material buildup point; an installation socket recessed too deeply can form a liquid retention cavity. Both conditions affect hygienic performance and the accuracy of hydrostatic pressure transmission.

For welded installation sockets, end-face flatness should be controlled during fabrication, and the inner side of weld seams must be ground smooth. For food and pharmaceutical tanks, wetted surface roughness should generally be confirmed in accordance with the company's hygiene standards to prevent rough welds from becoming locations for residue adhesion.

After installation, inspect the diaphragm edge for visible gaps, grooves, or mechanical scratches while the equipment is shut down. Do not pry or scrape the diaphragm directly with hard tools. Although 316L stainless steel diaphragms offer good corrosion resistance, localized damage may reduce long-term pressure resistance and corrosion resistance.

Quick Check of the Installation Position

For atmospheric-pressure or low-pressure tanks, measurement points may preferably be selected on the lower sidewall of the tank so that the sensor can cover the main level range. The measurement point height should match the control logic, avoiding a minimum effective liquid level below the sensor's actual installation reference point.

For sealed vessels, vapor-phase pressure compensation must also be considered in addition to the measuring end. The high- and low-pressure tapping locations in differential pressure measurement solutions must remain unobstructed, and impulse line length, condensation conditions, and installation height should be as consistent as possible.

On equipment subject to strong vibration, the transmitter housing and cables should be securely fixed. The mounting bracket should not transmit vibration from pumps, gear reducers, or piping directly to the sensor connection. Where necessary, use an anti-vibration mounting structure and reduce the length of unsupported cables.

II. Sealing Connections and Hygienic Structure Control

Select Clamp, Flange, or Threaded Connections According to Process Standards

For sanitary processes, clamp connections, DIN 11851, Varivent, or other sanitary interfaces compliant with equipment standards should be preferred. The interface specification must match the vessel nozzle and must not be forcibly assembled using temporary reducers, non-standard gaskets, or multiple layers of sealing materials.

When installing a clamp, ensure that the sealing gasket is evenly seated in the locating groove before tightening the clamp symmetrically. If the gasket is displaced, folded, or unevenly compressed, leakage may occur during positive-pressure operation and CIP circulation, and gaps that are difficult to clean thoroughly may also form.

Threaded connections are more suitable for general industrial media and are not recommended for applications with high hygiene requirements, easy scaling, or frequent online cleaning. If their use is necessary, select a sealing method compatible with the medium and prevent PTFE tape debris from entering the tank or adhering to wetted areas.

Seal Material Must Be Compatible with the Medium and Cleaning Fluid

Softer sealing rings are not always better. Medium composition, temperature, pressure, and cleaning conditions must all be considered. Common food-grade EPDM performs well in hot water and most cleaning media, FKM is suitable for certain oily media and higher-temperature conditions, while PTFE provides strong chemical corrosion resistance.

When the medium is a strong acid, strong alkali, or chloride-containing solution, particular attention should be given to evaluating the corrosion resistance of the diaphragm, installation socket, and sealing ring. Whether a strong-alkali level sensor is corrosion-resistant cannot be determined solely by its “316L stainless steel” marking; alkali concentration, temperature, duration of continuous contact, and cleaning cycle must also be verified.

Sealing rings should be replaced promptly if hardening, swelling, cracking, compression set, or surface tackiness occurs. It is recommended to recheck the interface after the first 72 hours of continuous operation and then establish a regular inspection system in line with the production schedule to prevent minor leakage from developing into a long-term hygiene risk.

III. Operating Condition Matching Determines Long-Term Measurement Stability

The Measuring Range Should Cover the Actual Level and Pressure Margin

The level measuring range should be calculated according to the maximum hydrostatic pressure, with an appropriate margin reserved. Using water as an example, a 10m liquid column corresponds to approximately 0.1MPa of pressure. If the medium density is higher than that of water, the actual hydrostatic pressure will increase accordingly, and the water-based range conversion must not be applied directly.

A high-accuracy level sensor does not mean that errors will not occur under any operating condition. If the actual liquid level remains below 10% of the measuring range for a long period, signal resolution and the effects of on-site interference become more apparent. It is generally recommended that the commonly used liquid level cover 60% to 90% of the rated range.

For sealed tanks, vessel operating pressure must also be added to the pressure resistance requirement at the measuring end. During selection, the sensor range, overload pressure, burst pressure, and process connection pressure rating must be confirmed separately; the model cannot be determined based only on liquid level height.

Pay Attention to the Effects of Temperature, Foam, and Deposits

Sanitary flush diaphragm level sensors need to withstand both production temperatures and cleaning temperatures. If SIP steam sterilization reaches 121℃ or higher, confirm the product's maximum process temperature, allowable duration, and zero-point recovery performance after cooling.

For media prone to foaming, foam above the liquid surface may not directly change the hydrostatic measurement value, but foam accumulation, entrained air in the liquid, and spray disturbances can cause short-term fluctuations. The control system may set appropriate damping of 3 seconds to 10 seconds in combination with the process cycle; filtering time should not be increased indiscriminately.

For highly viscous, crystalline, or particle-containing media, the potential for scale formation on the diaphragm surface should be assessed. The prerequisite for low-error level sensors to meet high-accuracy requirements is that the pressure-sensing surface remains clean, medium density is relatively stable, and the installation position is free from continuous scouring or deposition.

IV. Key Points for 24V Power Supply Wiring and Commissioning

Confirm the Output Type from the Nameplate Before Wiring

24V-powered level sensors are commonly available with two-wire 4-20mA output, as well as versions with three-wire voltage output or RS485 communication output. Before wiring, refer to the product nameplate, wiring diagram, and control cabinet terminal definitions; do not determine positive and negative polarity based solely on wire color.

For two-wire 4-20mA products, the positive power terminal is typically connected to the “+” terminal of the sensor, while the signal loop returns to the negative power terminal through the PLC analog input module. The supply voltage must be within the product's specified range, and commonly used 24VDC power supplies should also allow for line voltage drop and the voltage required by the input module load.

Signal cables should preferably use shielded twisted pairs and maintain a reasonable distance from variable-frequency drive power lines and motor cables. The shield layer should generally be grounded at one end, preferably on the control cabinet side. Multi-point grounding may create a ground loop, causing irregular fluctuations in the 4-20mA signal.

Empty Tank, Full Tank, and Process Conditions Should All Be Verified

Before commissioning, first check that the installation interface is leak-free, cable connections are reliably sealed, and housing grounding is normal. When the tank is empty and the diaphragm is clean, observe whether the output is close to 4mA or the corresponding zero-point value. If the deviation is significant, first rule out on-site factors such as residual liquid, negative pressure, or unstable temperature.

When verifying known level points, select four typical points at 25%, 50%, 75%, and 100%. If deviations at all points change linearly, focus on checking range and density settings. If only individual points are abnormal, inspect tank structure, medium fluctuations, or diaphragm deposits.

After commissioning is completed, record the range, zero point, supply voltage, output current, medium temperature, and installation date in the equipment log. If control level deviation occurs later, historical data can be used to quickly determine whether it is caused by sensor drift, medium changes, or modified control system parameters.

Establish a Periodic Maintenance and Fault Handling Mechanism

It is recommended to conduct visual inspections of sanitary flush diaphragm areas according to the production cycle, focusing on scale formation, corrosion spots, sealing ring aging, and leakage at connections. For continuously operated equipment, inspections may be scheduled once per month, with accuracy verification completed during annual shutdown maintenance.

When the output remains below 3.6mA or above 21mA, first consult the product fault definitions, then check the power supply, cable open circuits, short circuits, process overpressure, and internal sensor alarms. Do not remove clamps or loosen process connection components while the system is pressurized.
