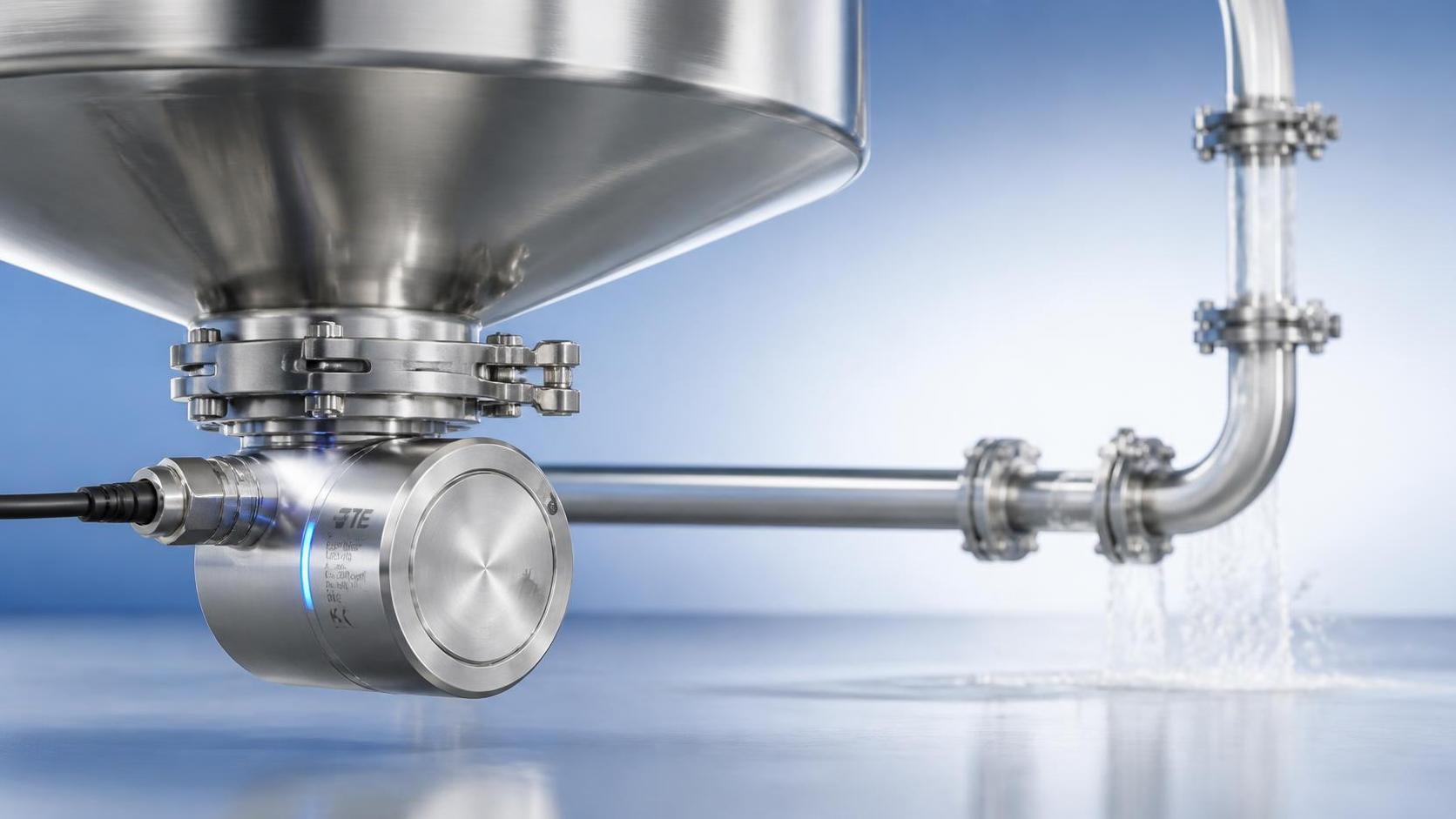

Certification Standards for Hygienic Level Sensors: Key Selection Considerations for the Food and Pharmaceutical Industries

Hygienic level sensors are used for level monitoring in storage tanks, fermentation tanks, batching tanks, reactors, purified water systems, and pipeline vessels. Their certification standards are related not only to measurement stability but also directly affect process hygiene and safety in industries such as food, beverages, dairy products, biopharmaceuticals, and daily chemicals. For measurement points in direct contact with materials, equipment materials, sealing structures, surface roughness, and cleaning compatibility should all be included in the acceptance scope.

Compared with ordinary industrial level transmitters, hygienic products cannot be selected based only on measuring range, output signal, and accuracy. If the sensor installation location has material buildup, dead zones, aging seals, or cleaning residues, it may cause microbial growth, cross-contamination, batch rejection, or even audit non-compliance. Therefore, process media, cleaning methods, temperature and pressure, wetted materials, and certification documents should be treated as equally important technical conditions during selection.

Xi'an Shenghongchuang Instrumentation Co., Ltd. and its subsidiary, Shaanxi Qinkong Sensor Technology Co., Ltd., can provide hygienic level measurement products and supporting transmission, display, and alarm solutions according to tank structure, medium characteristics, and on-site control system requirements. For non-standard tanks, highly corrosive media, high-temperature sterilization, and continuous production conditions, process parameter confirmation and structural compatibility assessment should be completed before procurement.

This article focuses on certification standards for hygienic level sensors, explaining key points related to regulatory basis, hygienic design requirements, material selection, installation verification, and documentation delivery, helping quality control personnel, equipment engineers, and procurement personnel establish practical selection criteria.

I. Which Certifications Should Be Considered for Hygienic Level Sensors?

Hygienic certification is not a single certificate; it is proof of compliance jointly formed by product wetted parts, manufacturing processes, application areas, and the company's quality system. Food and pharmaceutical projects should first clarify the product export region, industry regulations, and end-customer factory audit requirements before determining the certifications and reports required.

For the food, beverage, and dairy industries, common requirements include declarations of compliance for food-contact materials, FDA-related material requirements, 3-A hygienic design standards, and EHEDG hygienic design principles. For pharmaceutical, bioengineering, and high-cleanliness processes, greater attention is generally given to GMP systems, relevant FDA 21 CFR provisions, USP Class VI material verification, and traceable material documentation.

It should be noted that the scope of certification must be consistent with the actual configuration. For example, proof of material compliance for the sensor body does not mean that the supplied clamp gasket, lead wire, potting material, and connector all meet the same requirements. During procurement, the supplier should be required to confirm the list of wetted components according to the actual delivered model.

If the equipment is located in a hazardous area, Ex explosion-proof certification, equipment protection rating, and on-site wiring requirements should also be verified. Hygienic certification addresses cleanliness and material safety, while explosion-proof certification addresses safety in hazardous areas; the two cannot replace each other.

II. Wetted Materials and Hygienic Structures Are Key to Implementing Certification Requirements

1. Give Priority to Confirming 316L Stainless Steel and Material Traceability

The wetted metal parts of hygienic level sensors are typically made of 316L stainless steel. Compared with 304 stainless steel, 316L offers corrosion resistance in chlorine-containing media, acid and alkali cleaning solutions, and humid environments that is more suitable for most food and pharmaceutical processes. For media such as brine, fruit juice, fermentation broth, and chlorine-containing cleaning solutions, merely specifying “stainless steel material” is insufficient for selection requirements.

During project acceptance, attention should be paid to whether material certificates can correspond to the actual product batch, especially for pressure diaphragms, process connections, isolation diaphragms, and wetted welded sections. For high-cleanliness pharmaceutical systems, chemical composition, heat batch numbers, and surface treatment records may be further checked to prevent confusion between materials for non-wetted parts and those for wetted parts.

Seals must not be overlooked either. Common food-grade sealing materials include EPDM, FKM, PTFE, and silicone rubber, but different materials have different resistance to steam, high temperatures, oils and fats, acids, and alkalis. If CIP cleaning solution concentration is high or steam sterilization above 135℃ is involved, the temperature and chemical resistance of the seals should be reconfirmed.

For vessels containing particles, crystalline substances, or highly viscous materials, residual areas around the diaphragm should also be avoided. Flush diaphragms, flush mounting, and short process connections are generally more conducive to completing cleaning validation than ordinary threaded probes.

2. Surface Roughness and Welding Quality Determine Cleaning Effectiveness

Hygienic wetted surfaces should be as smooth and continuous as possible, without scratches or obvious weld depressions. The lower the surface roughness, the less likely materials are to adhere, and the easier it is for CIP cleaning solution to cover the measurement area. The food industry often uses Ra≤0.8μm as a basic reference, while high-cleanliness pharmaceutical or fine fermentation projects may require the higher standard of Ra≤0.4μm.

Welded areas should avoid pores, slag inclusions, incomplete penetration, and abrupt steps. If sensor mounting ferrules are welded on site, the smoothness of the inner wall and the quality of pickling and passivation need to be inspected after welding. Otherwise, even if the sensor has a hygienic design, non-standard tank connections may create cleaning dead zones.

Clamp connections are a common installation method in hygienic processes, facilitating disassembly, cleaning, and maintenance. Their advantages depend on matching clamp dimensions, gasket specifications, and installation torque. Gasket misalignment, uneven compression, or aging can affect hygienic performance and sealing reliability.

For level measurement points that are frequently disassembled and cleaned, seal replacement records should be established. Management can generally be based on operating cycles, medium corrosiveness, and CIP/SIP frequency. Seals should be replaced immediately if hardening, cracks, swelling, or permanent compression deformation is found; continued use based solely on visual cleanliness is not recommended.

III. Select the Level Measurement Principle According to Process Conditions

After hygienic certification requirements are met, a measurement principle matching the medium characteristics must also be selected. Common hygienic level measurement solutions include hydrostatic level transmitters, submersible level transmitters, differential pressure level transmitters, radar level meters, guided-wave radar level meters, and capacitive level switches. Different principles show significant differences in stability under conditions involving foam, steam, vacuum, viscous materials, and agitation.

For sealed storage tanks or vessels with pressure variations, ordinary pressure-based level sensors are affected by tank-top pressure. In such cases, differential pressure measurement, pressure transmitter solutions with isolation diaphragms, or non-contact radar measurement should be considered. If operating pressure is overlooked during selection, the level indication may show systematic errors as tank pressure fluctuates.

For fermentation tanks, dairy tanks, and vessels equipped with agitators, foam and agitation fluctuations can affect measurement signals. Radar products should be evaluated for dielectric constant, antenna fouling, and reflection from agitator blades; pressure-based products should be evaluated for bottom sediment, temperature drift, and loading conditions of the isolation diaphragm.

Control systems generally use 4-20mA, RS485 Modbus, or switching output. 24VDC power supply is a common configuration in industrial sites, but power ripple, grounding method, cable shielding, and PLC input type must still be confirmed to prevent on-site interference from causing level signal fluctuations or false alarm actions.

IV. Compliance Control for Installation, Cleaning, and Calibration

1. Installation Locations Should Avoid Material Buildup, Air Bubbles, and Mechanical Impact

Bottom-mounted pressure level sensors should be installed away from direct impact areas of feed inlets, return ports, discharge ports, and agitators. High-speed medium flow can subject the diaphragm to instantaneous pressure, causing output fluctuations; materials containing solid particles may also accumulate near the diaphragm, resulting in gradual zero-point drift.

Radar level sensors should be installed away from feed streams, agitator shafts, and tank walls, while avoiding strongly reflective structures such as internal coils and support rods. The installation angle should be confirmed based on the product instructions and tank structure; probes should not be installed at the center of the tank top solely based on experience.

Hygienic connections should remain axially aligned. After tightening the clamp, check whether the gasket is evenly compressed. Ordinary industrial sealants must not be used on site to fill gaps in hygienic interfaces, as they may create non-cleanable areas and pose contamination risks to food or pharmaceutical processes.

After installation, it is recommended to conduct basic verification under empty-tank conditions, at known level points, and near full scale. For commonly used ranges such as 0-5m or 0-10m, at least three measurement points should be checked: zero point, 50% of range, and close to 100% of range. The relationship between actual level and output current should be recorded.

2. Cleaning Validation and Periodic Maintenance Must Not Be Omitted

During CIP cleaning, confirm that cleaning solution temperature, concentration, flow rate, and circulation time do not exceed the allowable sensor limits. Common alkali cleaning, acid cleaning, and hot-water rinsing can have long-term effects on seals and diaphragm surfaces. Especially on high-frequency production lines, the instantaneous temperature resistance specified in the equipment manual is not equivalent to long-term continuous resistance.

If SIP steam sterilization is used, steam temperature, pressure, and holding time should be carefully verified. For example, a process condition of 121℃ for 30 minutes does not mean that all hygienic level sensors are suitable for long-term use; some products require high-temperature heat dissipation structures, remote isolation devices, or dedicated high-temperature-resistant seals.

Maintenance intervals should be established according to risk levels. For continuously operating food or pharmaceutical processes, it is recommended to inspect appearance, cables, seals, and signal stability every 3 months, and conduct metrological verification every 6 to 12 months. For high-temperature, high-pressure, highly corrosive, or frequently cleaned conditions, calibration intervals may be appropriately shortened.

During on-site calibration, standard equipment compatible with the accuracy class should be used. If the overall accuracy of a level sensor is 0.25%FS, the accuracy of the calibration equipment should generally be better than that of the device under test. Calibration records should include the model, measuring range, medium conditions, calibration date, deviation results, and disposition conclusion to facilitate quality audit traceability.

V. Documentation Checklist Before Purchasing Hygienic Level Sensors

Procurement personnel should not use price and delivery time as the sole criteria. The process connection, wetted material, seals, temperature rating, output type, and certification documentation of hygienic products directly affect subsequent operating costs. For products with the same 4-20mA output and 0-3m measuring range, actual applicability may differ significantly due to different diaphragm structures, surface treatments, and certification configurations.

It is recommended to clearly specify tank height, medium name, density, viscosity, maximum operating temperature, maximum operating pressure, cleaning method, connection specifications, supply voltage, control system type, and accuracy requirements in the technical agreement. For uncertain operating conditions, replacement should not be based only on historical models; technical personnel should review process changes before confirming the model.

Delivery documentation should at least include the product certificate of conformity, operating manual, wiring diagram, material description, calibration or inspection records, certification documents, and after-sales service information. For pharmaceutical, high-end food, and export projects, serial number traceability, seal declarations, surface roughness descriptions, and pressure test records may also be required.

Proper selection of hygienic level sensors essentially means converting process hygiene requirements into verifiable product parameters and documentation requirements. Only by first confirming regulations and materials, then matching the measurement principle, installation structure, and cleaning conditions, can level data reliability be ensured while reducing quality risks and downtime maintenance costs.
