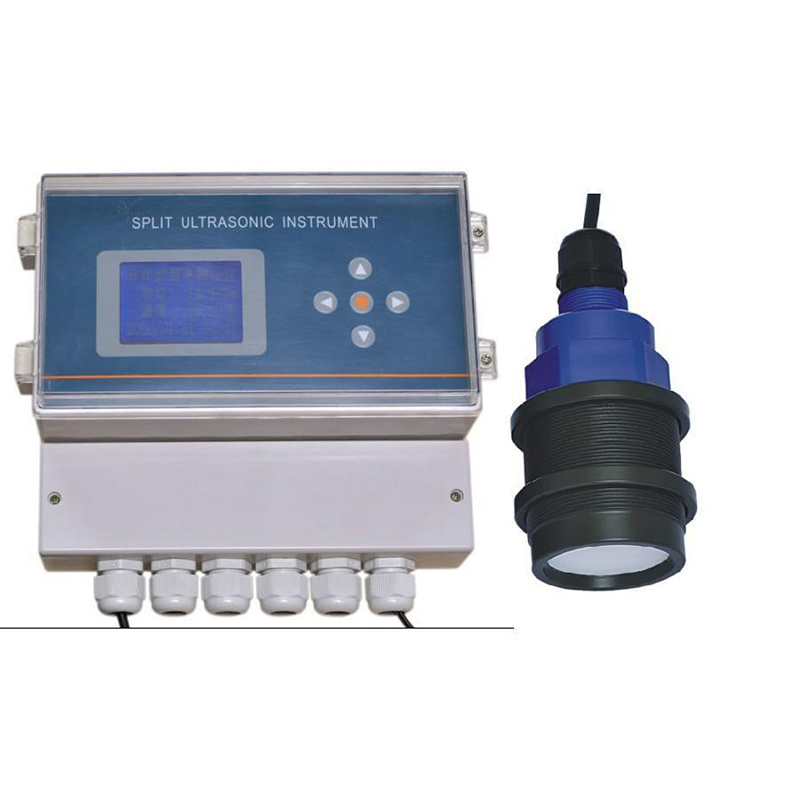

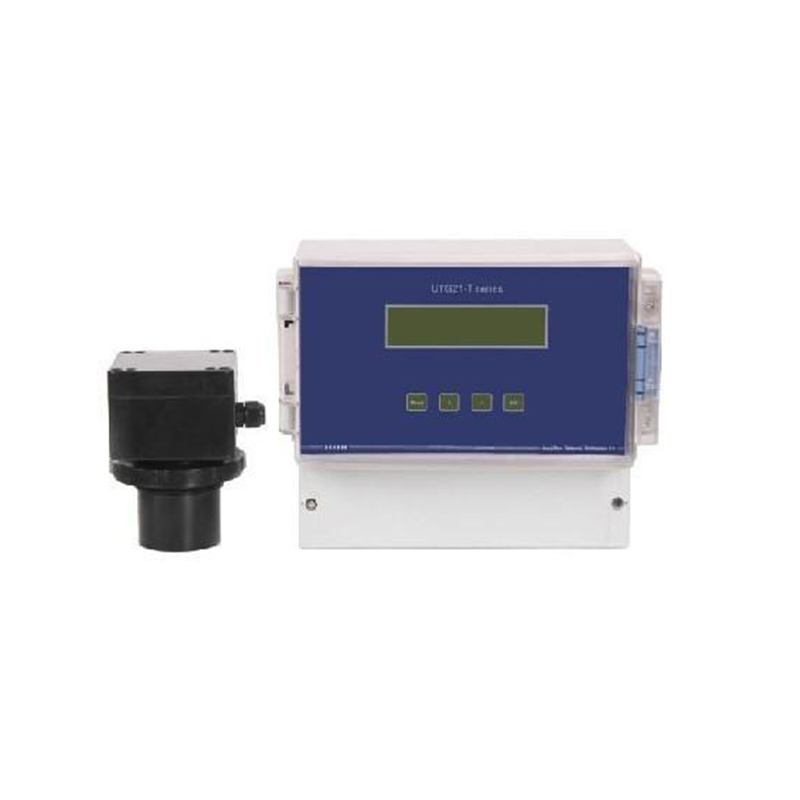

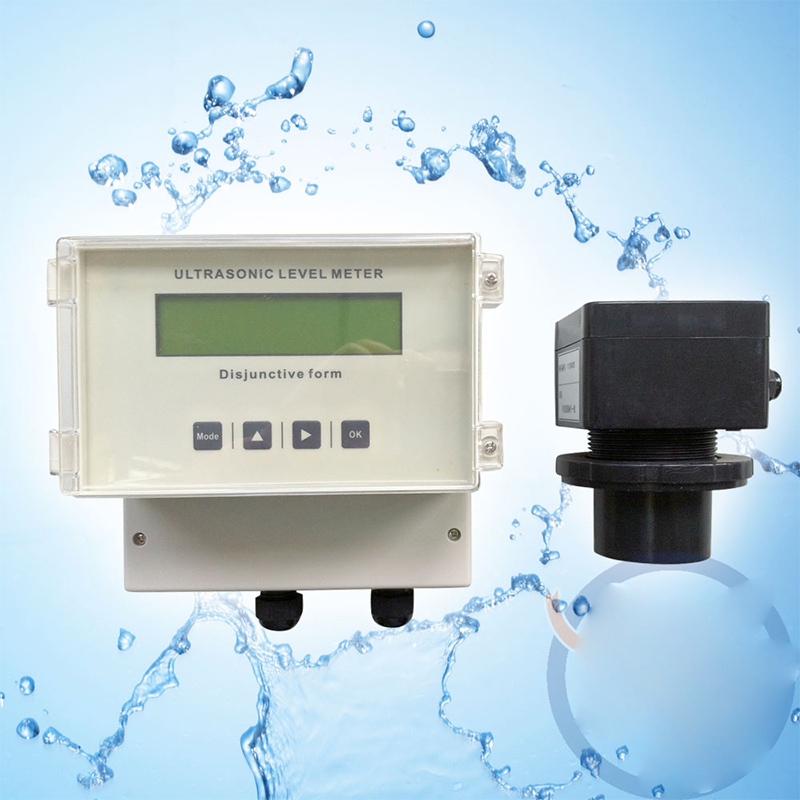

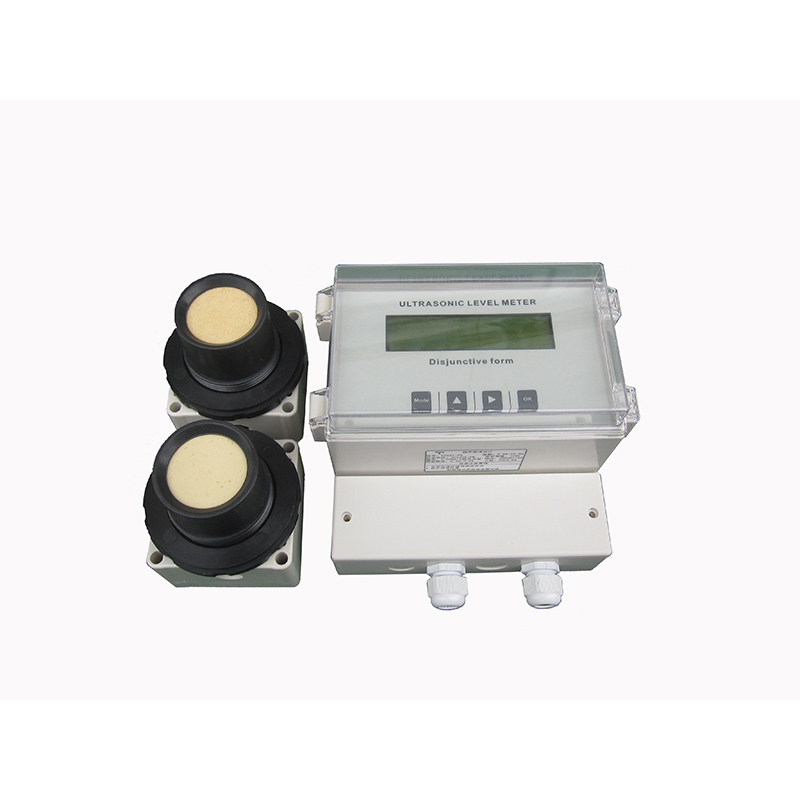

Split-type ultrasonic level meter, four-wire system,with built-in4-20mA and RS485 interface diagnostic module,two-line LCD display, temperature compensation available, featuring overvoltage and overcurrent protection, automatic interference suppression, and other characteristics,welcome to purchase.

Split-type ultrasonic level meter,Product features of the English four-wire split-type ultrasonic water level meter:

        1, adopts ABS housing, split-type installation;protection rating IP65;

        2, with the help of a two-line high-contrast display and keypad, on-site operation can be performed.

        3, with built-in 4-20mA current IRS485 interface diagnostic module.

        4, all input and output wires are protected against overvoltage and overcurrent.

        5, ABS engineering plastic housing, protection rating IP65.

        6, internally integrated temperature sensor provides real-time temperature compensation for sound velocity.

        7, automatically detects on-site electrical interference and suppresses it.

        8, four response speeds are available for selection, so even if the liquid surface fluctuates violently, the average level can still be accurately read.

        9, non-contact measurement, long service life.

 *FS: full scale. *Standard conditions: temperature 20℃ ± 5℃, humidity 45%～75%, no wind around, in air at 1bar.

        *When the ambient temperature is between -40℃ ～ - 20℃, the LCD cannot display and the instrument operates slowly. When the temperature is above -20℃, instrument operation and LCD display return to normal.

*FS: full scale. *Standard conditions: temperature 20℃ ± 5℃, humidity 45%～75%, no wind around, in air at 1bar.

        *When the ambient temperature is between -40℃ ～ - 20℃, the LCD cannot display and the instrument operates slowly. When the temperature is above -20℃, instrument operation and LCD display return to normal.

Ultrasonic water level meter selection and installation precautions:

      1, the ultrasonic level meter comes with a plastic nut. Flanges of various specifications can be customized according to user requirements.

      2, in order to prevent bracket vibration, the bracket should be thick and sturdy. Vibration reduction measures should be considered at the fixing point between the bracket and the tank wall.

      3, the recommended bracket arm length is 30-50cm.

Since its establishment, Xi'an Shenghongchuang Instrument Co., Ltd. has been mainly engaged in the R&D and production of pressure, level, temperature, differential pressure, digital display, weighing, and flow instruments.Main products include Swiss metallux ceramic piezoresistive sensors, self-developed ceramic capacitive pressure sensors. Diffused silicon, ceramic piezoresistive, strain gauge, metal capacitive, ceramic capacitive pressure transmitters, remote pressure transmitters, high-temperature pressure transmitters, flush diaphragm pressure transmitters, anti-corrosion pressure transmitters, integrated/split level transmitters, anti-corrosion level transmitters, lightning protection level transmitters, high-temperature guided pressure level transmitters, rigid rod level transmitters, flange level transmitters, air pressure transmitters, metal capacitive differential pressure transmitters, diffused silicon differential pressure transmitters, pressure controllers, thermocouples/RTDs, temperature transmitters, ultrasonic level meters

Precautions 1.All supplied products are provided with a product certificate and instruction manual, including product number, technical parameters, wiring, factory date, etc. Please carefully verify them to avoid misuse.2.Wiring should be carried out strictly in accordance with our company's instructions for use.3.This product is a precision instrument. Random disassembly, collision, dropping, and poking the sensor with sharp tools are prohibited.4.The transmitter can operate immediately after power-on, but the output becomes stable after preheating for 30 minutes.5.If any abnormality is found during use, the power supply should be turned off, use should be stopped, inspection should be carried out, or contact our company's technical department directly.6.During transportation and storage, restore the original packaging and store in a cool, dry, and ventilated warehouse.7.The quality warranty period is 12 months (damage caused by improper use such as pressure overload and wiring errors is not covered by the quality warranty).8.Special products are customized products and do not participate in the 7-day no-reason return policy. Customized products have a lead time and are non-returnable and non-exchangeable.
